39807532 Ingersoll-Rand 39807532 SSR 50-450 Red Eye Air Compressor Controller Starter Interface Board

vendor-unknown

141-2

  • 39807532 Ingersoll-Rand SSR 50-450 Red Eye Air Compressor Controller Starter Interface Board.
    The Part Numbers on the stickers are:
    39807532
    39857263
    *Note that on the 39857263 pins 7 - 14 on terminal BTS1 are not used.

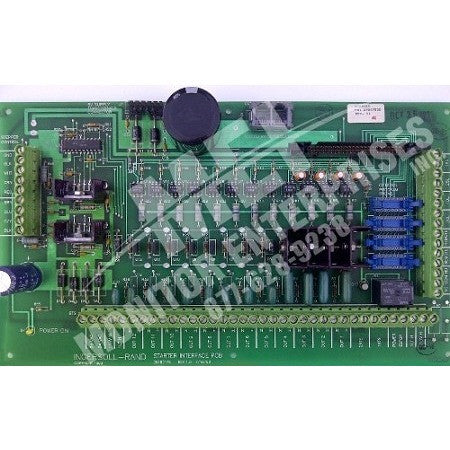

    39807532 & 39857263 Ingersoll-Rand SSR 50-450 Red Eye Air Compressor Controller Starter Interface Boards.
    The 39807532 & 39857263 Ingersoll-Rand SSR 50-450 Red Eye Air Compressor Controller Starter Interface Boards interface the Ingersoll-Rand 39825815 & 39797428 SSR 50-450 Red Eye Air Compressor Controller logic control inputs and stepper motor outputs.

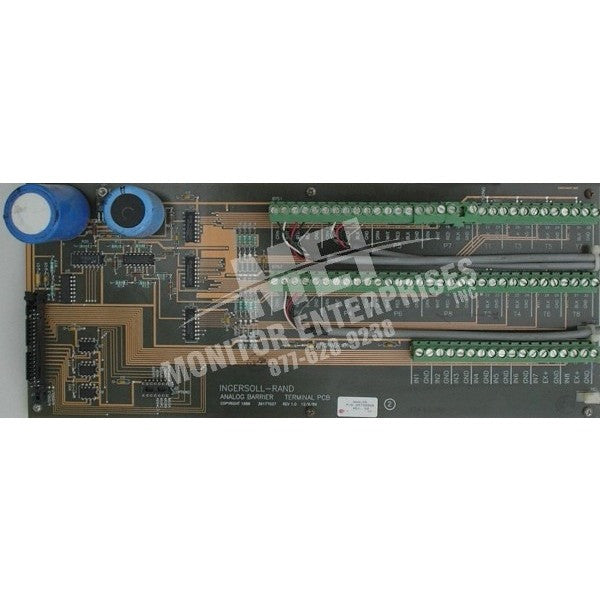

    This control function along with the Ingersoll-Rand SSR 50-450 39795588 Air Compressor Analogue Barrier Terminal PCB pressure and temperature inputs enable the control algorithm to balance air supplied to the air demand in a choice of control configurations.

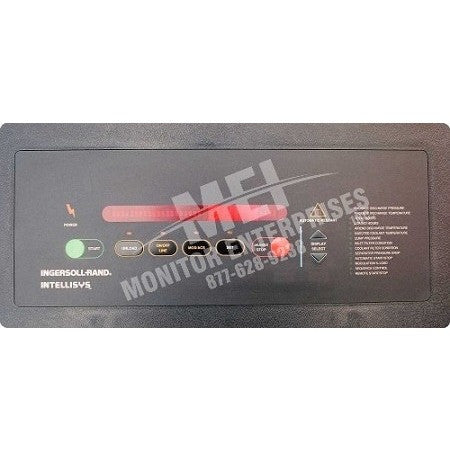

    The Ingersoll-Rand 39825815 & 39797428 SSR 50-450 Red Eye Air Compressor Controller constantly monitor and display the current status of your SSR compressor on the face panel. The Ingersoll-Rand 39825815 & 39797428 automatically warn the operator if any of the preset parameters deviate from their set values and if required shut down the compressor. The Ingersoll-Rand 39825815 & 39797428 remember the operating parameters prior to shutdown and therefore the restarting process is straightforward.
