- Our test facility allows us to test all the control functions of the Nirvana system. We use Nirvana Drive Motors to test the output Drive Function.
The Fault code system is excellent however our test procedure allows us to bypass Fault codes that can be misleading. This enables us to see the underlying problems.
We like to see the complete drive as well as the controller.
Test the motor and the Hall Effect sensors before installing the repaired drive.
Please take extreme care in packaging the unit for shipping.
The Nirvana system is an excellent efficient Compressor Drive System.
See Technical Information

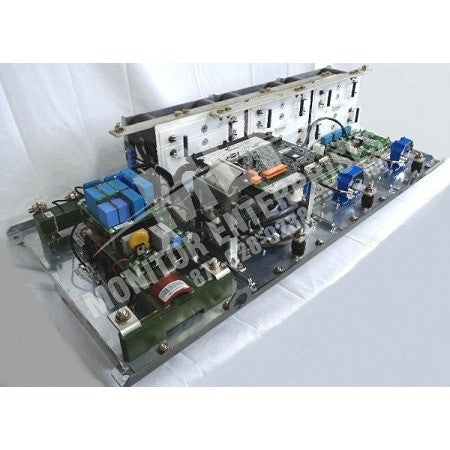

Ingersoll Rand Nirvana CCN22113294 MD180TIR 380-480 Type T2 Concept VS Drive Complete

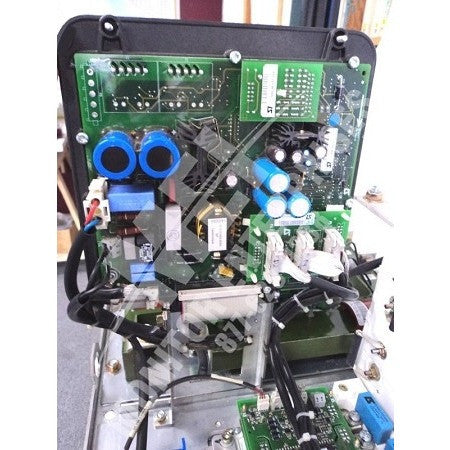

PEF720ND000 Control Board
PEF720NE000 Interface Board with:
PEF726NF000 ID Board
PEF720NG000 Distribution Board - 3 outputs - one for each phase
3 - 190NA001 CONCEPT IGBT Driver Assemblies - one for each phase
LSPPMODF Thyristor Assemby
LSPPE Phase Drive Module Chassis Assembly

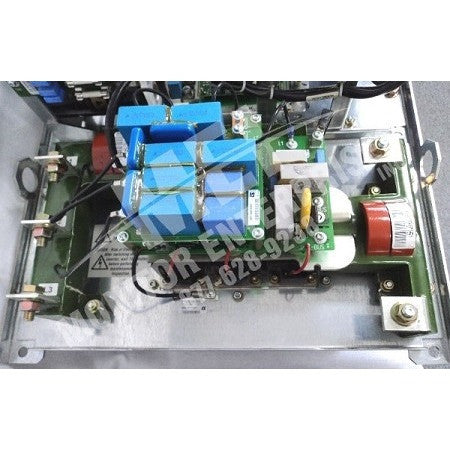

PEF720N1000 DC Buss Driver Assembly

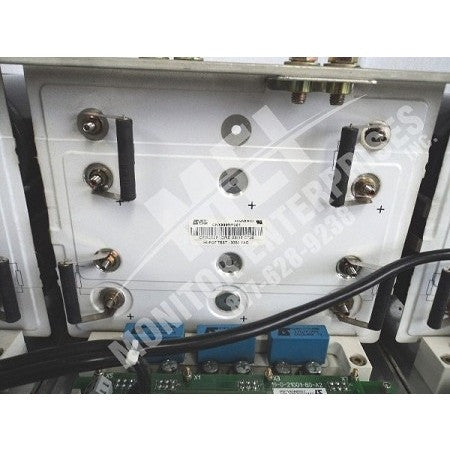

CNX999RR001 12 Capacitor Bank
12 - CDS003KEK003
RED180T220TInput Rectifier Module
PEF720N1000 Top Board
PEF720NJ000 2nd Board
