P3798102-00010 - UIM - MLM TURBOCOMPRESSOR PN: P3798102-00010 VANTAGE USER INTERFACE MODULE AND DISPLAY

The Vantage Control Panel

The two main components are the P3798102-00010 User Interface Module (UIM) and the P3798102-00010 Main Logic Module (MLM). Both these modules are self contained.

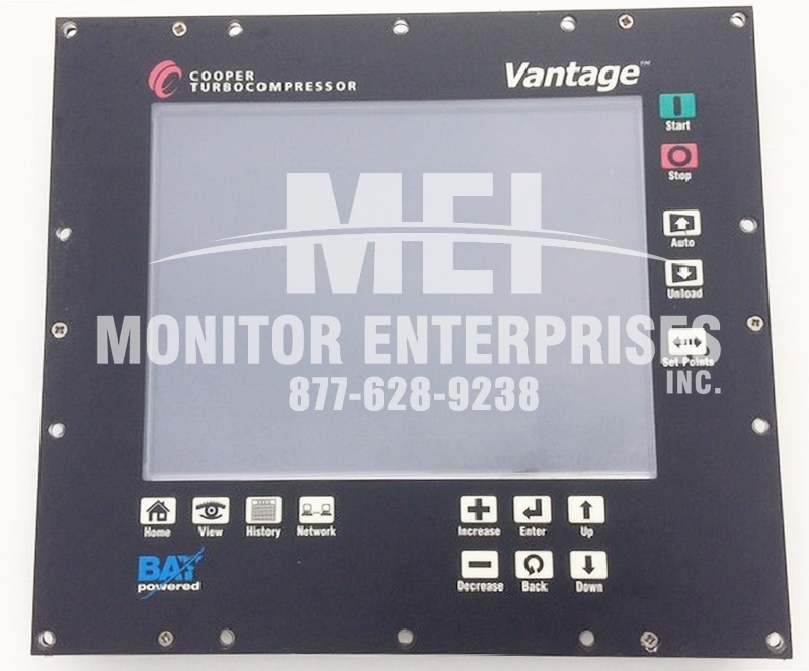

The P3798102-00010 UIM is a full-page, back-lit liquid crystal LCD display with an integrated 15 key, tactile keypad. The display provides detailed information on the operational condition and settings of the compressor.

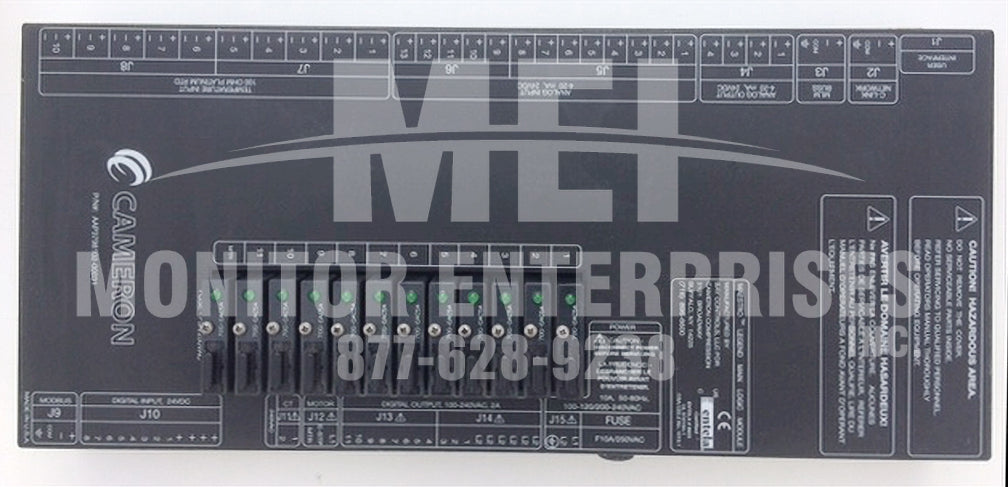

One or more P3798102-00010 MLM Main Logic Modules are included in the panel. Each MLM contains a power supply, a microprocessor, and I/O (input / output) channels. For applications that require increased I/O capacity, an additional slave MLM may accompany a master MLM in a single control package.

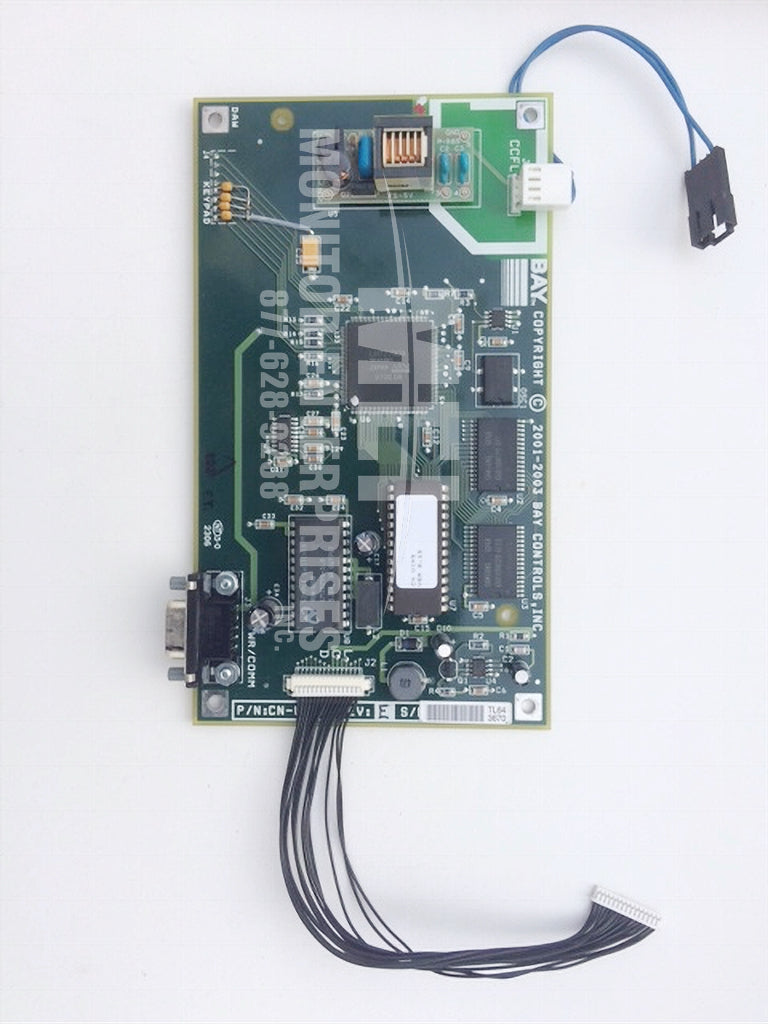

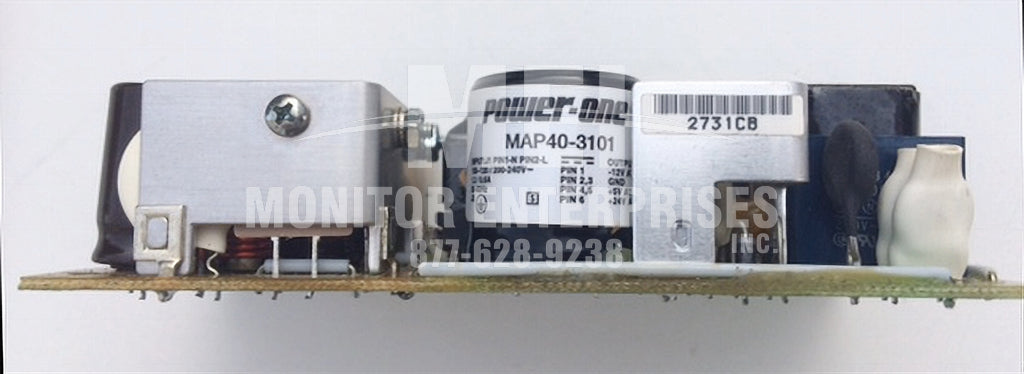

Included in this description are the BAY Display driver board and the power-one MAP40  3101 P3798102-00010 Power Supply.
