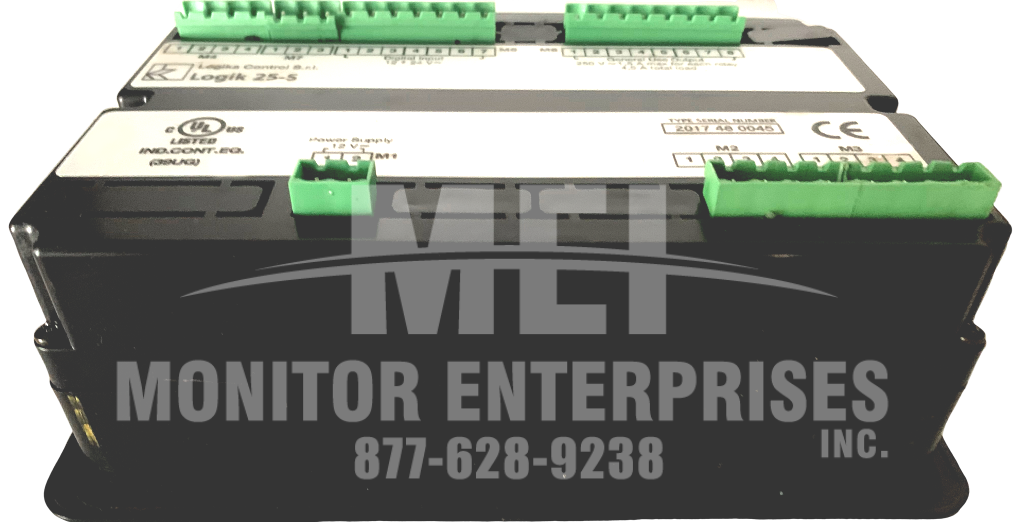

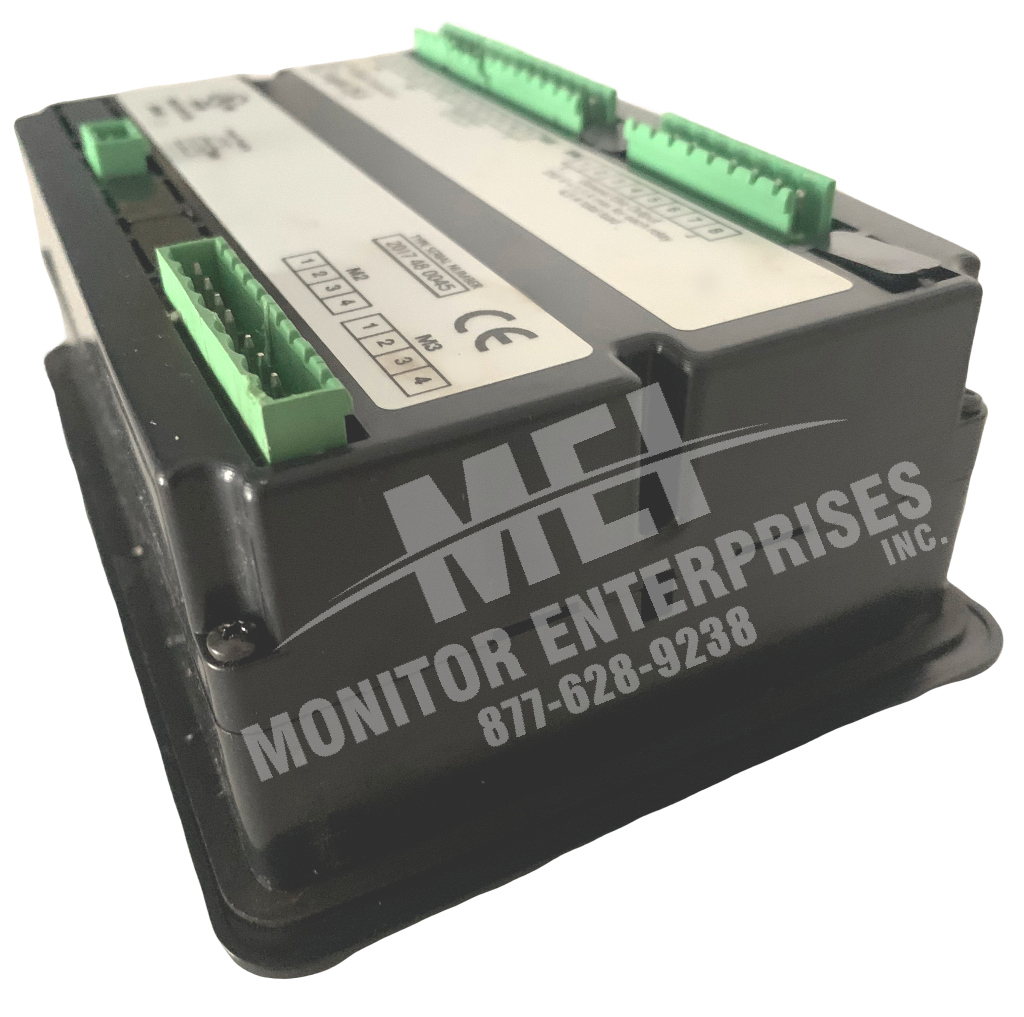

EATON COMPRESSOR LOGIK-25S EATONPOLAR 1314217115 AIR ROTARY SCREW COMPRESSOR CONTROLLER
***NOTE: FOR THE LATEST EATON COMPRESSOR LOGIC-25S EATONPOLAR 1314217115 TECHNICAL UPDATES CONTACT THE MANUFACTURER.***
Industrial control equipment for the operation and management of screw compressors only; don’t mount and use in explosive room.
In accordance to CE regulation:
Low tension: 2006/95/CE
Safety: EN 60730-1 (General regulations)
In accordance to UL 508 (FILE #: E316817).

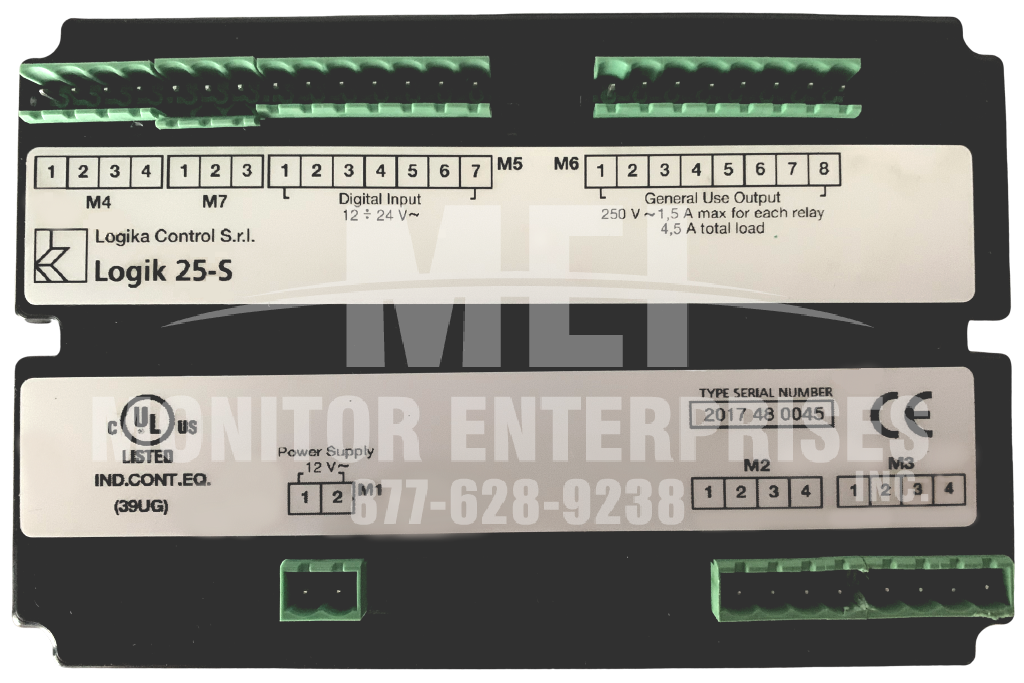

Inputs and outputs via terminal-block board to wires (300V, 15A, 18-14AWG).
Black auto-extinguishing box in ABS:
a) according CE:
IP64 for the front panel and IP20 for the other parts;
b) according UL:
Type 1 and Type 12 for front panel mounting , installation in pollution degree 2 for the other parts
Tightening torque: 8 Nm
Working temperature: 0°C (32°F) ÷ 50°C (122°F) 90% RH (non condensing).
Storage temperature: -20 (-4°F) ÷ +70 °C (158°F).
Power supply: 12Vac ± 10% 50 ÷ 60 Hz. (power of the transformer’s secondary: ~ 9 VA) from safety transformer. Max. current absorbed = ~ 350 m.A..

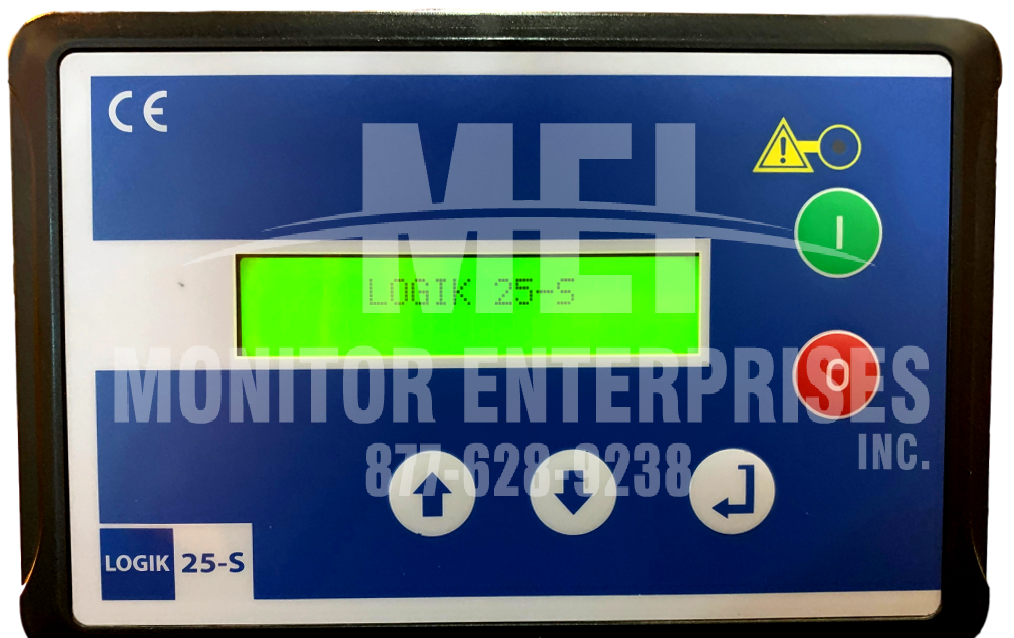

Visualization through back light alphanumerical LCD 20 digits x 2 rows and nr. 1 led for alarm status.
Messages selectable in 8 languages: Italian – English – French – German – Spanish – Portuguese – Turkish – Russian.
nr. 5 key buttons: increase, decrease, enter, start, stop.
nr. 1 input for temperature probe.
nr. 1 input for pressure transducer.
nr. 1 input for PTC or Klicson for motor protection (IN8).
nr. 7 opto isolated digital inputs from 12/24Vac to detect:
EATON COMPRESSOR LOGIK-25S EATONPOLAR 1314217115 AIR ROTARY SCREW COMPRESSOR CONTROLLER.
IN 1 = emergency stop button
IN 2 = thermal motor
IN 3 = thermal fan
IN 4 = remote start/stop
IN 5 = air filter pressure switch
IN 6 = separator filter differential pressure switch
IN 7 = settable as: door of the electrical cabinet open – control phase relay – generic alarm
nr. 3 digital inputs for connection to Logika Control phases unit. nr. 7 outputs via relay with contact 1.5A max. (general use):
RL1 = line contactor
RL2 = delta contactor
RL3 = star contactor
RL4 = load solenoid valve
RL5 = fan contactor
RL6 = settable as: condensate drain solenoid valve or compressor status
RL7 = settable as: alarm output or compressor status
MAX. RATED CURRENT WITH ALL RELAYS CLOSED: 4.5A
nr. 1 real time clock with buffer battery, around 10 years electrical life.
nr. 1 serial port RS232 for connection to second compressor (Master/Slave operation), P.C. or GSM unit (Super Vision and Tele Assistance).
Check min. and max. power supply to the controller.
Non volatile memory to store setting data, working hours, compressor status, alarm list. The controller switches OFF due to micro interruption longer than ~ 300 m.s..
EATON COMPRESSOR LOGIK-25S EATON POLAR 1314217115 AIR COMPRESSOR CONTROLLER ACCESORIES:
nr. 1 temperature probe KTY 13.5 for detection of the air end temperature: black cable TPE, length 2.5 m,
working range –10 ÷ 130°C, resolution 1°C, precision ± 1°C.
nr. 1 Logika Control phases unit.
nr. 1 pressure transducer 4-20 mA for working pressure control: 2 wires, AISI 316L stainless steel membrane,
working range 0 ÷ 15 bar, resolution 0,1bar, precision ± 0,1bar.
WindowsTM application for remote control (Super Vision and Tele Assistance).
nr. 1 Logika Control phases unit:
a) for power supply 380 ÷ 400V three phase b) for power supply 230V three phase
c) for power supply 440 ÷ 460V three phase
