SIEMENS QUINCY 6AV6642-0BA01-1AX0 & 6AV6642-0BA01-1AX1 SIEMENS QUINCY 144993-1 Touch Panels.

Siemens Quincy # 6AV6642-0BA01-1AX0 & 6AV6642-0BA01-1AX1 Seimens Quincy 144993-1 Touch Panels.

Siemens Part#: 6AV6642-0BA01-1AX0

Siemens Part#: 6AV6642-0BA01-1AX1

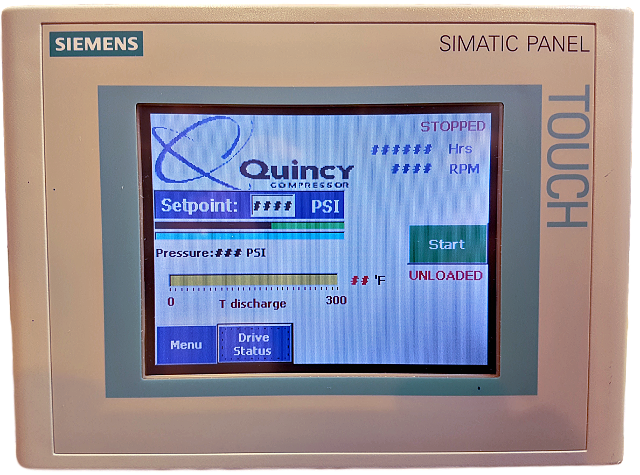

Quincy 144993-1 Touch Panel

The Siemens Part#: 6AV6642-0BA01-1AX0 is a touch panel from the TP177B range. These touch panels have a wide range of features and benefits for the user and are suitable for an array of industrial environments thanks to their IP65 front protection and IP20 rear protection.
This particular version has a 5.7 inch 256 colour display.

Siemens Part#: 6AV6642-0BA01-1AX0 SPECIFICATIONS:
Display 5.7 inch STN Display, 4 blue mode levels / 256 colours Resolution 320 x 240 pixels Control elements. Touch screen resistive analog plus 4 freely configurable function keys. User memory 2048 KB

Interfaces 1 x RS485, 1 x RS422, 1 x RS232 optional 1 x USB, 1 x multi media card slot 1 x RJ45 Ethernet. Degree of protection IP65, NEMA 4x front if mounted, IP20 rear Installation cutout 198 x 142 mm (W x H) Front panel 212 x 156 mm (W x H) Device depth 44 mm.

Configuration software:
SIMATIC WinCC Comfort (TIA portal) or WinCC flexible Compact.

Siemens Part#: 6AV6642-0BA01-1AX1 SPECIFICATIONS:
The  6AV6642-0BA01-1AX1 from the Siemens TP177B range is a 6 inch operator panel with a 256 colour display. This HMI has a number of communication protocols including MPI interface, Profibus DP, RS485, RS422, USB and Ethernet. There is also an interface slot for a printer and one for a memory card.

Configuration Software: WinCC Flexible 2005.
